OV Truss.
Lightweight. Adaptable. Return on investment.
Our range of Stage Plus OV truss is manufactured under licence of Total Solutions Group and represents an innovative engineering solution to a common size of truss for the entertainment, event and presentation industry.
• OV Truss
• Designed to current Eurocodes
• Greater loading for a reduction in self-weight
• Quick to put together
• Innovative Engineering and Design
• Available in 30cm square and 40cm square
• Looks sleek and modern
• Includes derating factor of 15% learn more >
What is the Frequent
Use Factor?
OV30 Truss
0.5m order code: TFL-OV30-050 4.1kg
1.0m order code: TFL-OV30-100 6.8kg
1.5m order code: TFL-OV30-150 –
2.0m order code: TFL-OV30-200 12.3kg
2.5m order code: TFL-OV30-250 –
3.0m order code: TFL-OV30-300 17.8kg
4.0m order code: TFL-OV30-400 23.3kg
OV40 Truss
0.5m order code: TFL-OV40-050 4.7kg
1.0m order code: TFL-OV40-100 8.0kg
1.5m order code: TFL-OV40-150 –
2.0m order code: TFL-OV40-200 14.7kg
2.5m order code: TFL-OV40-250 –
3.0m order code: TFL-OV40-300 21.4kg
4.0m order code: TFL-OV40-400 23.3kg

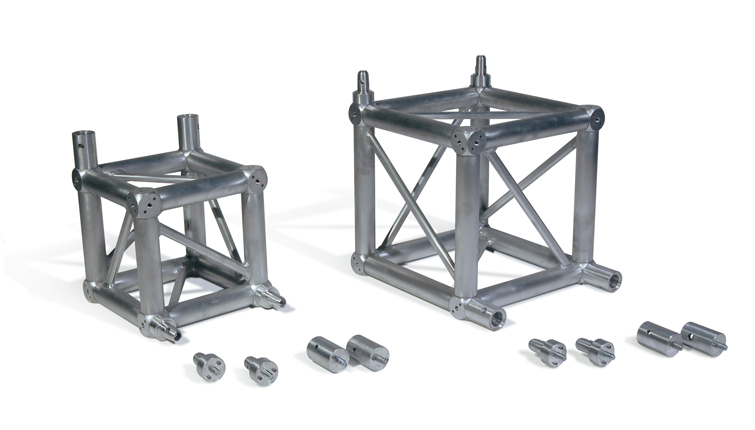

Corners & Couplers.
Corners, in the OV Trussing range, come in two forms. The first is the standard truss block corner. This maintains the visuals of the truss and has all female fittings for maximum flexibility. The second is a universal corner. Occupying the same overall dimensions as the truss corner, both corners can be intermixed in any configuration. The universal corner can dramatically reduce your corner block inventory.
The OV Truss range uses a conical connector for fast, quick and ridged joining. All truss lengths have a male one end, female the other configuration. This means less ‘eggs ‘ to loose and also means that a perfect, flowing brace pattern is maintained. All corners are a female configuration, maintaining complete flexibility with your inventory.

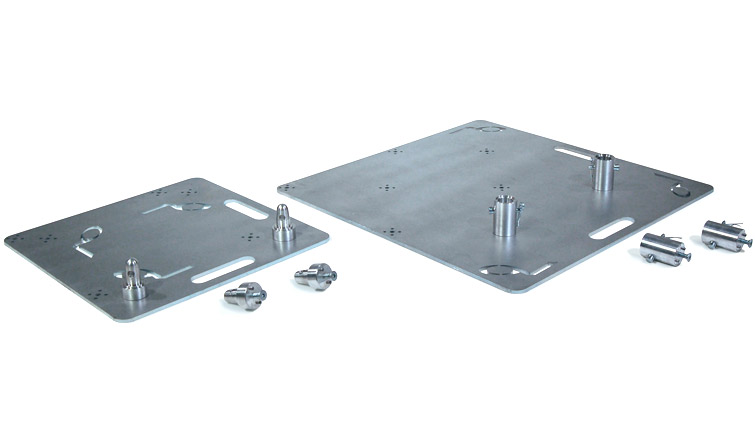

Base Plates.
The OV Trussing range of base plates are made from 8mm steel with an electroplated finish and use structural grade 6082-T6 male and female connectors that provide easy application with intuitive location pins. trusses can be mid or corner mounted.
OV30 Base Plates
TFL-OV30BP-500 500mm OV30 Base Plate
TFL-OV30BP-750 750mm OV30 Base Plate
OV40 Base Plates
TFL-OV40BP-500 500mm OV40 Base Plate
TFL-OV40BP-750 750mm OV40 Base Plate
Couplers
TFL-OV30BPC-M OV30/40 Base Plate Coupler – Male
TFL-OV30BPC-F OV30/40 Base Plate Coupler – Female
Truss Podium.
Made using our OV30 1m truss section, our ov truss podium is ideal for any professional environment, school or business. The aluminium pulpit is roughly 1.2m tall and is fabricated from structural grade 6082-T6 grade aluminium and steel boomerang style base plates. The lectern comes fully assembled when delivered.

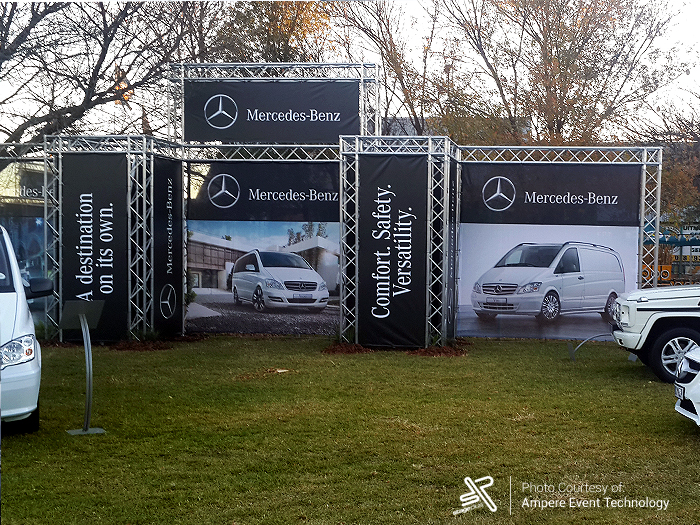

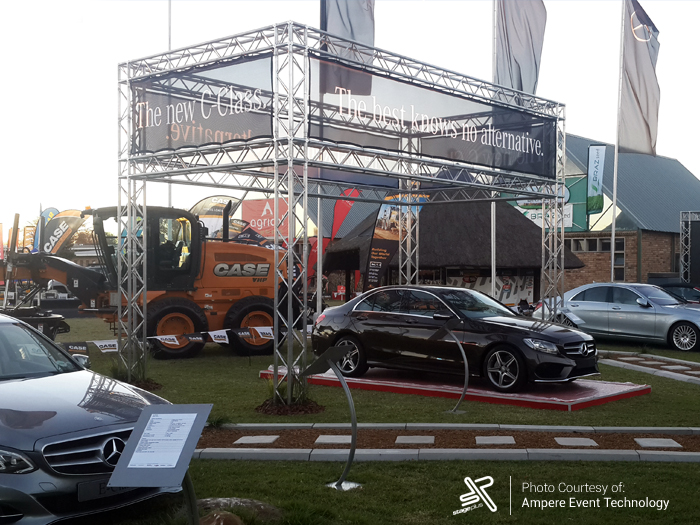

Gallery.
